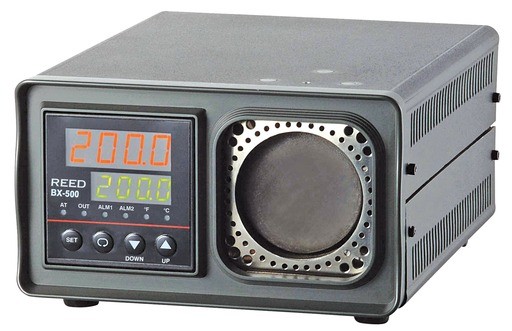

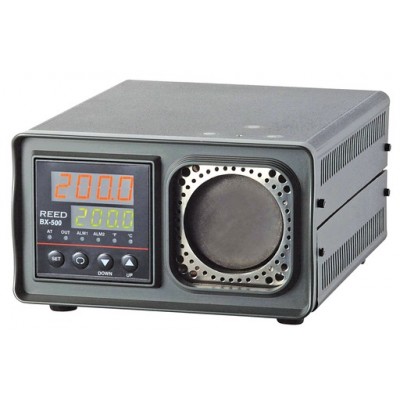

CALIBRATOR, INFRARED THERMOMETER

1 673,00 $CA

En stock

Sku:

ITM-BX-500

Soyez le premier à commenter ce produit

Qté :

-OU-

Envoyer à un ami

Détails

Sku: BX-500

Informations Supplémentaires

For calibrating non-contact infrared thermometers up to 500°C (932°F)

Temperature controlled black-body target with a diameter of 2.25" (57mm)

Wide field of view to compensate for optical variations in individual infrared thermometers

Fixed emissivity of 0.95

Simply set the desired temperature in increments of 0.1°, wait for the calibrator to attain equilibrium, point the infrared thermometer at the target, and measure the radiated energy

Contact RTD reference well is located directly behind the blackbody target to assure even higher accuracies of ±0.1°C

Specifications:
Temperature Range: 50 to 500°C (122 to 932°F)
Resolution: 0.1°C (0.1°F)
Accuracy: ±0.8°C (±1.6°F): <=100°C (212°F); ±1.6°C (±3.2°F): 100 to <=200°C (212 to 392°F); ±2.8°C (±5.6°F): 200 to <=500°C (392 to <=932°F)
Stability: ±0.1°C (±0.2°F): <=100°C (212°F); ±0.2°C (±0.4°F): 100 to <=350°C (212 to 662°F); ±0.4°C (±0.8°F): 350 to <=500°C (662 to <=932°F)
Target Emissivity: Fixed at 0.95
Cooling Time: 45 minutes to 100°C (122°F)
Heating Time: 40 minutes to maximum
Aperture Diameter: 57mm
Power Supply: 220VAC (±10%), 1.25A/110VAC (±10%), 2.5A
Dimensions: 180 x 114 x 233mm
Weight: 3 kg
