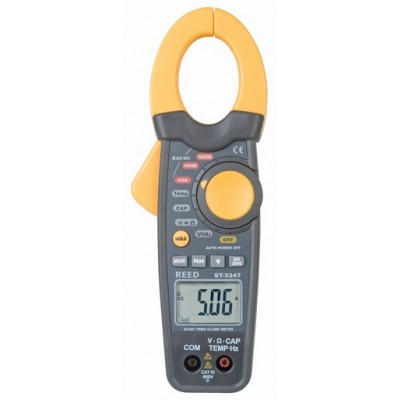

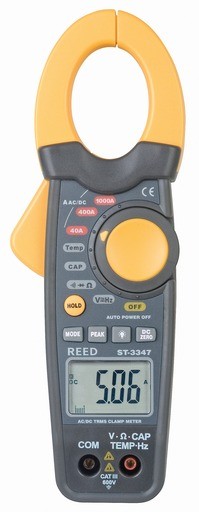

CLAMP METER, TRMS, 1000A AC/DC

250,60 $CA

En stock

Sku:

ITM-ST-3347

Soyez le premier à commenter ce produit

Qté :

-OU-

Envoyer à un ami

Détails

Sku: ST-3347

Informations Supplémentaires

Measures both AC and DC current and voltage

True RMS reading instrument permits precise measurements regardless of waveforms

4000-count digital display with 40-segment analog bargraph

Audible continuity test and diode check

Peak hold function

Data hold function

DCA zero function

Low battery indication and auto power off

Double molded housing

Electronic overload protection

Designed to meet IEC61010-1 Cat. III 600V

Includes test leads, soft carrying case and batteries

Specifications:
AC Current Max. Range/Resolution: 1000A/10mA
Basic Accuracy: ±2.5% rdg. ±5 dgt.
DC Current Max. Range/Resolution: 1000A/10mA
Basic Accuracy: ±3.0% rdg. ±4 dgt.
AC Voltage Max. Range/Resolution: 600V/0.1mV
Basic Accuracy: ±0.8% rdg. ±2 dgt.
DC Voltage Max. Range/Resolution: 600V/0.1mV
Basic Accuracy: ±1% rdg. ±4 dgt.
Resistance Max. Range/Resolution: 40MΩ/0.1Ω
Basic Accuracy: ±1.0% rdg. ±4 dgt.
CapacItance Max. Range/Resolution: 40µF/0.01nF
Basic Accuracy: ±3.0% rdg. ±5 dgt.
Frequency Max. Range/Resolution: 10MHz/0.01MHz
Basic Accuracy: ±1.2% rdg. ±3 dgt.
Temperature Max. Range/Resolution: 1000°C (1832°F)/ 1°C(°F)
Basic Accuracy: ±3.0% rdg. ±5 dgt.
Dimensions: 229(H) x80(W) x 49(D) mm
Weight: Approx. 303 g
