FORCE GAUGE, 20.00KG, DATA LOGGER

833,00 $CA

En stock

Sku:

ITM-SD-6020

Soyez le premier à commenter ce produit

Qté :

-OU-

Envoyer à un ami

Détails

Sku: SD-6020

Informations Supplémentaires

Measures tension and compression

Fast/Slow AD selection

Data Record in Peak hold or Normal mode

Full capacity tare (zero) capability

Force is measured in kg, lb or Newtons

Display is reversible so that it always legible regardless of direction

Real time data logger with integral 2GB SD memory card (OPTIONAL)

Just plug the SD card into the computer and it downloads directly to EXCEL

RS-232 and USB computer interface

Easy to read LCD with backlight

Auto or manual power off

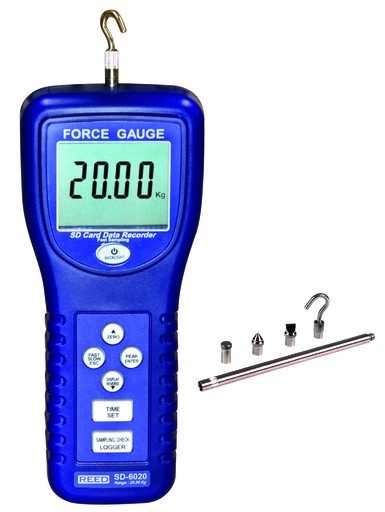

Includes flat head, cone head, chisel head and hook adapters, 120mm extension rod and carrying case

Specifications:
Measuring Capacity: 20.00 kg / 44.10 lb / 196.12 N
Resolution: 0.01 kg / 0.01 lb / 0.02 N
Accuracy: ±(5% + 2 dgt.)
Full Scale Deflection: 0.1mm max.
Sampling Time: Normal: 1 second to 8 hours; Peak hold: 10 to 500 ms
Memory Card: SD memory card, 1 GB to 16 GB
Data Output: USB/RS232 PC computer interface
Power Supply: 6 x 1.5V UM3/AA batteries
Dimensions: 215 x 90 x 45mm (8.5 x 3.5 x 1.8”)
Weight: 650 g (1.43 lb)
