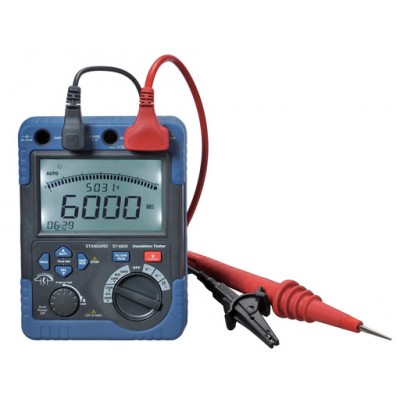

HIGH VOLTAGE Insulation Tester

1 253,00 $CA

En stock

Sku:

ITM-R5002

Soyez le premier à commenter ce produit

Qté :

-OU-

Envoyer à un ami

Détails

Sku: R5002

Informations Supplémentaires

Wide range measurements from 500V to 5000V and up to 60GΩ

Sources up to 1.2mA current during tests to offset capacitance load

Polarization index measurement (PI)

Dielectric absorption ratio measurements (DAR)

Time set measurement function

Auto-discharge function and voltage output warning function

Live circuit warning symbols plus audible warning

Live circuit detection prevents insulation test if >30V is detected

Max/Min, Peak, Relative value and Data Hold functions

6000-count digital display with bargraph and backlight

Meets IEC61010-1 Cat. IV 600V safety standards

Includes test leads, batteries and carrying case

Specifications
Insulation Resistance
Test Voltages: 500V, 1000V, 2500V, 5000V DC
Measurement Range: 0 to 60.0GΩ
Accuracy: ±5% rdg. +3 dgt.
Open Circut Voltage: +20%, -0%
Rated Current: 1 to 1.2mA
Short Circuit Current: Approx. 1.3 mA
Resistance Tests
Measurement Range: 0.1 to 6000Ω
Accuracy: ±1.5% rdg. +10 dgt.
Continuity Test: Buzzer sounds at <50Ω
Short Circuit Current: ≥200mA
Open Circuit Test Voltage: ≥4.5VVoltage Tests
Measurement Range: 0.5 to 600.0V AC/DC
Accuracy: ±1.5% rdg. +5 dgt.
Power Supply: 8 x 1.5V "C" R14 batteries
Dimensions: 198 x 148 x 86mm (7.8 x 5.8 x 3.4")
Weight: 1.5 kg (3 lb)
