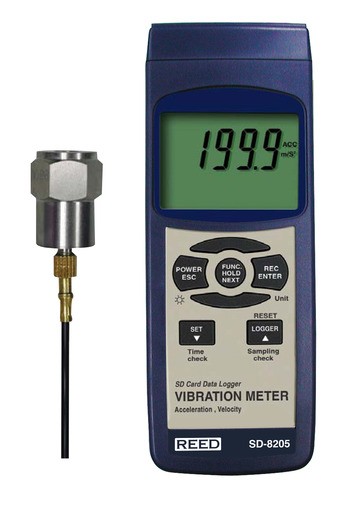

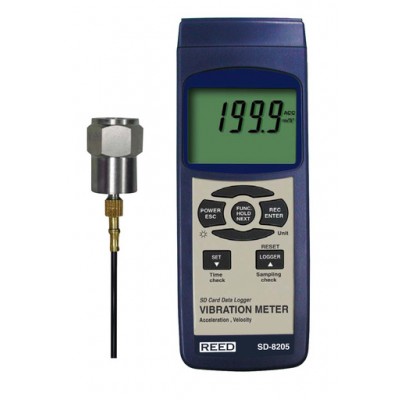

VIBRATION METER, DATA LOGGER

973,00 $CA

En stock

Sku:

ITM-SD-8205

Soyez le premier à commenter ce produit

Qté :

-OU-

Envoyer à un ami

Détails

Sku: SD-8205

Informations Supplémentaires

Measures vibration levels in machinery by measuring velocity and acceleration

Frequency range meets ISO 2954 standards

Unique vibration sensor with magneitc base

RMS, Peak hold, and Max/Min record

Metric or Imperial measurement units

Real time data logger with integral 2GB SD memory card (OPTIONAL)

Just plug the SD card into the computer and it downloads directly to EXCEL

RS-232 and USB computer interface

Easy to read LCD with backlight

Auto or manual power off

Includes vibration sensor with cable, magnetic base and hard carrying case

Specifications:
Velocity Range: 0.5 to 199.9 mm/s; 0.05 to 19.99 cm/s; 0.02 to 7.87 in/s
Resolution: 0.1 mm/s; 0.01 cm/s; 0.01 in/s
Accuracy: ±(5% + 2 dgt)
Acceleration Range: 0.5 to 199.9 m/s2; 0.05 to 20.39 g; 2 to 656ft/s2
Resolution: 0.1m/s2; 0.01 g; 1 ft/s2
Accuracy: ±(5% + 2 dgt)
Auto Sampling Time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds
Memory Card: SD memory card, 1 GB to 16 GB
Data Output: USB/RS232 PC computer interface
Power Supply: 6 x 1.5V UM3/AA batteries
Dimensions: Main instrument: 203 x 76 x 38mm; Probe: 37 x 16mm dia, Cable Length: 1.2m
Weight: Main instrument: 515g; Probe: 99g
